SPRT (Standard Platinum Resistance Thermometer), Model 909
Isoecth Model 909 - Cost Effective SPRT Series

Working S.P.R.T.s

-200°C to 662°C (572°F)
  • 3 Probe Lengths to choose from
  • Wide Range
  • Proven Design
  • Nominal Diameter 7.5mm


Product Code: 909
Contact us for pricing

   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS
This economically-priced Standard Platinum Resistance Thermometer, Model 909, is the workhorse of calibration laboratories all over the world. During 2007 we reviewed our range of SPRTs and now have new models in the 909 family, the 909L and 909H. The wide temperature ranges and economic pricing make this thermometer ideal for the secondary laboratory. For smaller uncertainties to suit the Primary Laboratory refer to the Model 670 SPRTs. The resistance element is of pure platinum, coiled and mounted in a strain free construction. The former is of pure alumina material and all parts have been pre-aged to eliminate contamination and strain. All joints are welded to minimize resistance changes. The leads are brought to a handle assembly where they are connected to a low loss cable, 2M long and screened. The 909Q has a quartz sheath while the 909L and 909H have metal sheaths. Whilst metal sheathed thermometers appear more robust than the quartz glass models it should be noted that ALL SPRTs are fragile devices and must be handled with care. Three thermometer lengths are available, standard length 480mm, extra length 550mm or maximum length 600mm. Quartz glass thermometers have the advantage that the internal components are visible and can be inspected and continue to be our recommended models. The low temperature models have excellent immersion characteristics and a significant cost saving when compared to the higher temperature models.

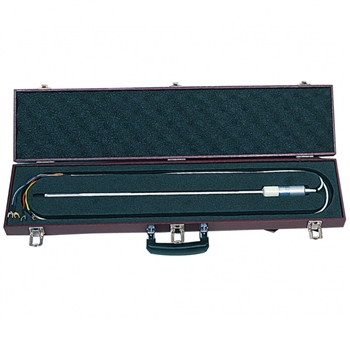

The Model 909 is supplied with a calibration certificate giving RTPW and Wga. Alternatively we can provide a complete UKAS calibration certificate, see table opposite. For transportation and storage the Model 909 is supplied in its own attractive carrying case.
Model Range (°C) Ratio Wga Outer Sheath Construction Nominal Diameter Stem Length Sensor Length Notes
909Q
25.5Ω
-200 to 670 >1.11807 Quartz Sealed with dry oxygen / argon mix 7.5mm 480mm
550mm
600mm
65mm Isotech recommended secondary standard SPRT
909Q
100Ω
-200 to 550 >1.11807 Quartz Sealed with dry oxygen / argon mix 7.5mm 480mm
550mm
600mm
65mm 100 Ohm secondary standard SPRT
909H
25.5Ω
-80 to 670 >1.11807 Metal Sealed 6mm 480mm
550mm
600mm
65mm Internal alumina tube protects sensor from contamination
909H
100Ω
-80 to 550 >1.11807 Metal Sealed 6mm 480mm
550mm
600mm
65mm Internal alumina tube protects sensor from contamination
909L
25.5Ω
-200 to 165 >1.11807 Metal Sealed with dry oxygen / argon mix 6mm 480mm
550mm
600mm
65mm Optimised for low temperatures, less stem conduction due to internal contruction
909L
100Ω
-200 to 165 >1.11807 Metal Sealed with dry oxygen / argon mix 6mm 480mm
550mm
600mm
65mm Optimised for low temperatures, less stem conduction due to internal construction
