Spherical Blackbody Source, Model 878 Cyclops

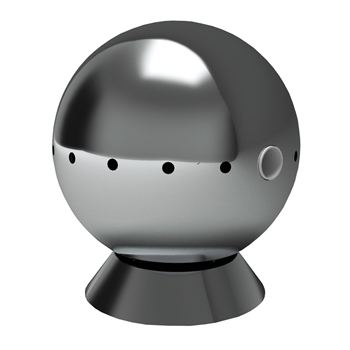

Isotech, Spherical Blackbody Calibration Source


Product Code: 878 CYCLOPS
Contact us for pricing

   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS
Spherical Blackbody Source
Wide Temperature Range 100°C to 1300°C
Can be adapted for Thermocouple Calibration

The Cyclops Model 878 is a spherical blackbody source. It consists of an inner black sphere that sits inside a spherical furnace and is suitable for use as a radiation source for infrared thermometers.

The inner sphere has a nominal diameter 230mm and is accessed by an optical sightings tube. The furnace can be supplied in one of two constructions, one providing an aperture size of 17mm and one of 45mm.

The furnace can be adapted for thermocouple operation by replacing the inner sphere with an equalizing black and using a different control sensor.
Model 878
Temperature Range 100°C to 1300°C
Emissivity Greater tha 0.999
Stability ±0.1°C
Display Resolution 0.1°C to 999.9;
1°C from 1000 to 1300
PC Interface included
Power 3kW typical
Voltage 100-130 or 208-240 Vac
50/60Hz
Dimensions 425 Diameter
Weight 25 kg
Options
Ceramic equalising Block to accept up to 8 thermocouples 878-02-08
