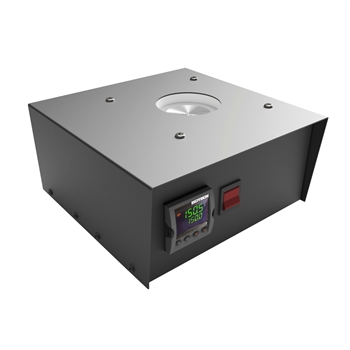

Greybody Source, Model 975
Isotech, Infrared Calibrator with 0.95 Emissivity


Product Code: 975
Contact us for pricing

   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS
50°C to 350°C
Emissivity > 0.95
70mm Ridged Plate Target

When the high accuracy of the Gemini R is not necessary this product offers a cost effective solution for the calibration and testing of infrared thermometers.

The Greybody Model 975 gives fast accurate results with a larger sensing area. A temperature sensor sits just under the target surface and controls the temperature of the source. A custom designed surface sensor is used to set the controller calibration and a traceable certificate is supplied with each source.
Model 975 Greybody
Temperature Range 50°C to 350°C
Display Resolution 0.01°C 50 to 99.99
0.1°C 100 to 350
Heating time 35 minutes
Target Size Ridged Plate, 70mm Diameter
Stability ±0.2°C
Accuracy ±2
Emissivity >0.95
Power 180 Watts
Voltage 100-130 or 208-240 Vac
PC Interface Included
Dimensions H 115mm
W 230mm
D 225mm
Weight 3.9kg
Please state voltage required
