Low Temperature Metrology Furnace

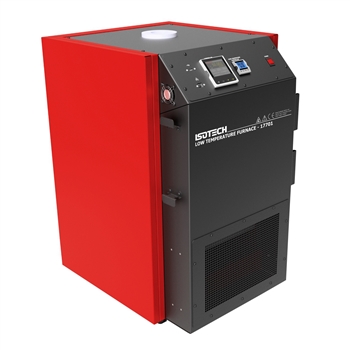

Isotech Low Temperature Metrology Furnace


Product Code: ITL-M-17701
Contact us for pricing

   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
Single Zone
Aluminium Alloy Block
6 to 12 hour Plateau

The Isotech Low Temperature Fixed Point Furnace is designed specifically to realize and maintain the freeze plateaux of Isotech Indium, Tin and Zinc Fixed Point Cells, for Calibration of thermometers on the International Temperature Scale of 1990.

The Low Temperature Furnace is a single-zone furnace.

The recommended procedure for establishing a freeze plateau requires operator attention until the plateau is realized. Following that, the Model 17701 Furnace will maintain the indium or the tin plateau, essentially automatically, for a period of 10 to 12 hours and the zinc plateau for 6 to 8 hours.

1. The furnace core, into which the freeze-point cell is inserted, is of aluminium alloy, which provides a very low thermal gradient along the core length. The main furnace heater is of the parallel-tube design as used as NIST. A pre-warming tube is provided.

2. An advanced proportioning electronic control system regulates furnace temperature, using a platinum resistance thermometer as sensing element. The controller may be calibrate in-situ using Freeze Point Cells as references.

Two entirely independent over-temperature safety devices are included. A dedicated (on-off) over-temperature control circuit provides active safety. A fusible link in the main power circuit provides passive safety.

3. The Low Temperature Furnace is completely self-contained, castor mounted and requires no external supplies (except power).
Model ITL-M-17701
Temperature Range 50°C to 500°C
Uncertainty <1mK (with cells)
Control 0.1°C Resolution
Communications Included as standard
Power 1.5kW, 108-130
or 208-240VAC, 50/60Hz
Core Size 54.7 x 420mm
Dimensions H 960mm
W 600mm
D 560mm
Weight 115kg
Accessories
411-01-11 Annealing Adaptor
824-01-00 Fan Assembly

How to order
ITL-M-17701 Low Temperature Furnace
Please specify voltage required
