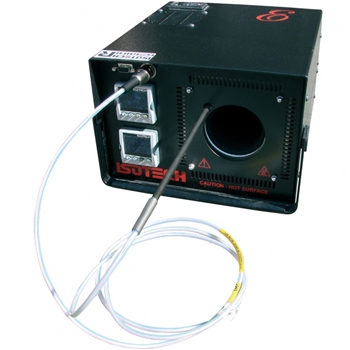

Blackbody Calibrator, GEMINI R - Medium Temperature Blackbody Source
Blackbody Calibrator, GEMINI R - Medium Temperature Blackbody Source

Medium Temperature IR Thermometer Calibrator 30°C to 550°C (1022°F)

  • 30°C to 550°C (1022°F)
  • 0.995 Emissivity
  • Ideal for Raytek ST, MX & CI Series thermometers
  • Includes External Reference Probe
  • Accepts Fixed Point Cells
  • NIST Certificate: For the built-in Indicator and supplied probe
Base Price: $7,509.00

Product Code: 976 GEMINI R

   Product Description

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS

Black Body Source "GEMINI R"

Black Body Calibrator for Medium Temperature Ranges

The Gemini R is a blackbody source with which radiation pyrometers, commonly referred to as IR sensors, can be calibrated. With a temperature range of 50°C to 550°C, the temperature of the cavity can be set with 0.1°C resolution. The temperature of the furnace is set and indicated on a PID controller. An independent indicator is also provided for higher accuracy with a standard probe, which indicates the actual radiance temperature. Temperature variation over a 5-minute period, as viewed on the temperature controller, is ±0.2°C and a radiation thermometer directed into the cavity detects similar variations.

The Gemini R's cavity's size is 2.5" x 6.3" deep (65mm x 160mm). Maximum temperature differences are ±1°C in the range of 100°C to 500°C. The Gemini R is capable of accepting blackbody fixed points to achieve the highest level of a radiation measurement possible. Typical fixed-point uncertainties are ±0.25°C. Gallium, indium, tin and zinc cells are available.

Emissivity is greater than 0.995, and traceability may be established with a NIST certificate for the built-in indicator and/or supplied probe. The Gemini R can be supplied with RS232 or RS422 communications.
Model 976
Temperature Range 30°C to 550.0°C
Emissivity Greater than 0.995
Stability ±0.1°C
Display Resolution 0.01°C to 99.99
0.1°C from 100 to 550
Heating Time 45 minutes
Aperture Diameter 65mm
Cavity Depth 160mm
PC Interface included
Power 1000 Watts typical
Voltage 100- 130 or 208 -240 Vac 50/60Hz
Dimensions H 310mm
W 265mm
D 200mm
Weight 10kg
Options
Fixed Point Cell 431-03-00
Gallium Hockey Puck Cell 431-03-00
Indium Hockey Puck Cell 976-05-00A
Tin Hockey Puck Cell 976-05-00B
Zinc Hockey Puck Cell 976-05-00C
Orifice Plates 10, 20, 30, 40, 50mm
(Restricts Cavity Aperture)
976-01-05
Carrying Case 931-22-64
Literature

micro KDatasheet micro KDatasheet
Gemini R Datasheet Gemini R Manual
