Semi Standard Thermocouples

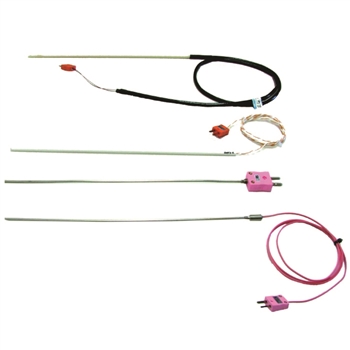

Isotech, NIST Traceable Reference Thermocouples

Reference Grade Thermcoouples: 0°C to 1300°C (2372°F)
  • Stability: Types R, S and N for highest stability performance
  • Versatility: Many different sizes, constructions and temperature ranges
  • NIST Traceable or ISO-17025 Accredited calibrations available
  • Perfect for Reference probes in Dry Block Calibrations and Furnaces
Base Price: $255.00


Product Code: TCS


Model Selection*:


   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS

NIST Reference Thermocouple

NIST Certified Semi-Standard Temperature Probe

Wide Temperature Ranges
Noble Metal & Type N for best life, stability and reproducibility
Can be supplied with UKAS calibration

These thermocouples are suitable for use as reference in Isotech Dry Blocks and for use with temperature indicators. Details of our laboratory grade Standard Thermocouples with separate cold junctions can be found in our publication "solutions for Primary and Secondary Laboratories".

The 935-14-91 is constructed from Platinum and Platinum Rhodium alloys can can be used to 1300°C Recommended for the Pegasus 1200 and general purpose applications. It has 1M of compensating cable terminated with a miniature thermocouple plug. The 935-14-88 is similar to the 14-91 but is made entirely from precious metals, with platinum wires all the way to the miniature plug.

There is a range of high quality mineral insulated metal sheathed (MIMS) Type N thermocouples. these devices are lower cost than the noble metal types and can be bent to a desired shape if required. They are suitable for use in Isotech Dry Blocks and for general purpose measurement and calibration applications.

The system accuracy or uncertainty will depend on the application and what instrument they are used with. The table shows teh uncertainties that we can offer with optional UKAS calibration from our accredited laboratory.
Specific Probe Information
Model Temp Range Diameter Length Types Available Termination
935-14-91 0°C to 1300°C 5mm 300mm R or S 3 Foot Extension wire with Mini Plug
935-14-88 0°C to 1300°C 5mm 300mm R or S 3 Foot Platinum wire with Mini Plug
935-14-63 0°C to 1300°C 3mm 300mm N 3 Foot Extenison wire with Mini Plug
935-14-66 0°C to 1300°C 3mm 500mm N 3 Foot Extenison wire with Mini Plug
Literature

935 Series Thermocouples Datasheet
935 Series Thermocouples Datasheet
