Semi Standard Type S Thermocouple - Temperature Range 0C to 1300C

Temperature Range 0C to 1300C (2372F)
  • Wide Temperature Ranges
  • Noble Metal & Type N for best life, stability and reproducibility
  • Can be supplied with UKAS calibration
Base Price: $473.00

Product Code: 935-14-91-S

   Product Description    Specifications

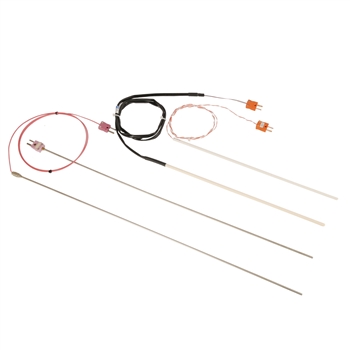

Semi Standard Type S Thermocouple

Thermocouple for Temperature Range 0C to 1300C

This thermocouple is suitable for use as a reference in Isotech Dry Blocks, and for use with temperature indicators.

This semi standard is lower cost, and suitable for a variety of industrial applications. The 935-14-91 is constructed from platinum and platinum-rhodium alloys, and can be used to 1300C. It is recommended for the Pegasus 1200 and general purpose applications. It has 1M of compensating cable terminated with a miniature thermocouple plug.

The system accuracy or uncertainty will depend on the application and what instrument it is used with. The table shows the uncertainties that we can offer with optional UKAS calibration from our accredited laboratory.
