T100 Series Reference PRT Probes
T100 Series Reference PRT Probes (-200°C to 450°C)

Alternative Views:


Reference PRT Thermometers: -200C to 450C (842F)

  • Temperature Ranges from -200 to 450C
  • Ideally suited as a Secondary Standard Reference PRT
  • Exceptional stability and low drift
  • Calibrated Uncertainties from 9 to 21mK (0.009C to 0.021C)
  • Custom diameters and lengths available, contact Isotech with your requirements
  • SMART connectors, DIN, Lemo, or Gold plated Spade terminations available
Base Price: $345.00


Product Code: T100


T100 Temperature Range*:


Add NIST Traceable Calibration*:


   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS
The T100 series provide full range Platinum Resistance Thermometers (PRTs) for use in every application from standards calibration to site temperature measurement.

If our 'off" the shelf' range will not suit your needs we are able to supply custom manufactured thermometers to almost any specifcation.

Thermometers can be supplied calibrated or uncalibrated. Calibration is normally carried out in our USA calibration laboratory.

However calibration can be arranged to suit your particular needs and we regularly submit thermometers for calibration to customer approved laboratories throughout the world.
Universal Specifications
Ro 100Ω 0.05 Ω
Alpha 0.003850 0.000005
Standard IEC 60751
Stability less than 0.010 Ω/year
Recommended Current 1 mA
Self Heating at 1mA 0.004C
Calibration Optional ISO-17025 Accredited Calibration at extra cost.
Connection Four Wire

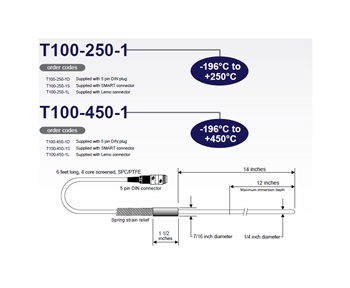

Specific Probe Information
Model Temp Range Diameter Length Sensing Length Handle
T100-250-1 -200C to 250C 1/4" 14" 1" NO
T100-450-1 -200C to 450C 1/4" 14" 1" NO
Literature

Isotech 935 Series PRTS
935 Series Semi-Standard PRT Datasheet
