Hot Plate Surface Sensor Calibrator, Model 983

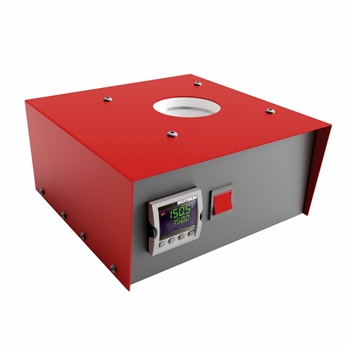

Isotech 983 Hot Plate Surface Sensor Calibrator
Alternative Views:

Small Hot Plate Surface Sensor Calibrator "Isotech 983"
50C to 350C
  • Stable to 0.1C
  • Low Cost Portable Hot Plate
  • PC Interface and Software
Base Price: $4,445.00

Product Code: 983

   Product Description    Specifications
The Isotech Small Hot Plate surface probe calibrator is a lightweight, portable calibration system designed for surface mounted sensors. The flat surface plate is made from precision-machined aluminum. The sensor to be tested is simply placed on the surface. For higher accuracy, a calibrated surface temperature sensor can be placed alongside, and the two compared.

Good thermal contact is ensured by the flat disk, which is recessed to allow the optional use of a heat transfer paste or fluid. Uniform heat distribution is achieved with a flat spiral heater clamped to an integrating block below the surface of the plate. The typical accuracy that can be achieved is 1C, but this will be influenced by the type of sensor to be calibrated.

The internal control sensor is located immediately below the hot plate temperature probe's surface.

A protective cover that can fit over the block is included, along with a comprehensive handbook. The Hot Plate surface temperature sensor calibrator can be supplied configured for Fahrenheit operation; please specify on order.

The temperature range for this flat-surface temperature sensor is from 50 to 350C, which is set by an advanced, but easy to use, temperature controller. The controller has been upgraded for 0.01 resolution below 100C (0.1 above 100). A PC interface is included with this hot plate temperature probe, along with an RS232 interface and Windows software.
