The microK family of precision thermometry bridges use a completely new measurement technique to achieve accuracies to better than 0.02ppm.
There are four models to suit all levels of temperature metrology from National Measurement Institutes to those wanting a solution to make low uncertainty temperature measurements in a range of applications.
In addition to making the best resistance measurements, the microK makes high accuracy thermocouple measurements with a voltage uncertainty of <0.25μV. The microK multi-channel temperature scanner can be used with all standard thermometer types including SPRTs, Standard Thermocouples, Industrial PRTS and thermistors.
First introduced in 2006 the microK is rapidly becoming the instrument of choice at the world's leading NMIs and many commercial laboratories. All microK models now include IEEE-488 General Purpose Interface Bus as well as RS232 and USB. The microK 70 and microK 125 also feature an Ethernet port and can be monitored and controlled across a LAN.
|
Model
|

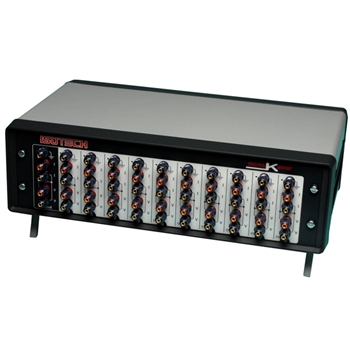

microsKanner
|
|
Channels
|
10
|
|
Keep-Warm Currents
|
0–10 mA ±0.4% of reading, ±7 μA Resolution: 2.5 μA
|
|
Input Connectors
|
Cable Pod connector accepts: 4 mm plugs, spades, or bare wires
|
|
Contact Material
|
Gold-plated tellurium copper
|
|
Interface
|
RS232 (9600 baud)
|
|
Operating Conditions
|
Full Application: 59°F to 86°F (15°C to 30°C), 10–90% RH
Operational: 32°F to 122°F (0°C to 50°C), 0–99% RH
|
|
Power
|
88–264 VAC, 47–53 Hz (universal) 10 W max, 1.2 A max
|
|
Case Dimensions
|
Height 6.5 in (166 mm)
Width 20.5 in (520 mm)
Depth 11.8 in (300 mm)
|
|
Weight
|
28 lbs (12.6 kg)
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Literature
|
|
|
|
|
|
MicrosKanner Datasheet
|
MicrosKanner Manual
|
|
|
|
|
|
 |
 |
 |
 |

|
