Model 988 - Human Body Temperature Black Body Source

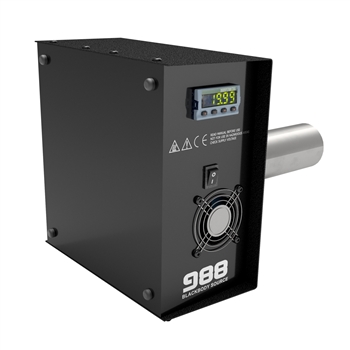

Isotech Blackbody Source, Model 988 Low Temperature Calibrator

Alternative Views:


Low Temperature IR Thermometer Calibrator
Temperature Range of 20C to 45C (113F)
  • Accuracy: 0.2C (Combined accuracy & stability)
  • Emissivity: 0.97 0.2
  • Controller Resolution: 0.01C
  • Ideal for Calibration of IR thermometers around human body temperature
  • NIST Certificate: For the built-in Indicator
Base Price: $1,900.00

Product Code: 988

   Product Description    Specifications


First introduced to assist in relation to the SARS outbreak during the early 2000s the Model 988 is now helping in relation to coronavirus. It can be used to increase the accuracy of non-contact fever detection systems helping in the fight against COVID-19. Applications also include checking non-contact clinical thermometers.

This blackbody meets the demand for a simple, cost effective but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures around human body temperature.

A 70 mm diameter ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. The temperature of the plate can be set from 20C to 45C to a resolution of 0.1C.

The standard version has a 210mm long tube mainly used with thermal imagers. A second version has a 40mm tube more suited for checking medical thermometers.

Literature
988 Blackbody Datasheet 988 Blackbody Manual 988 Blackbody Human Temp IR Source
988 Datasheet 988 Manual 988 Presentation
