QuickCal Blackbody - Hand Held Infrared Calibrator

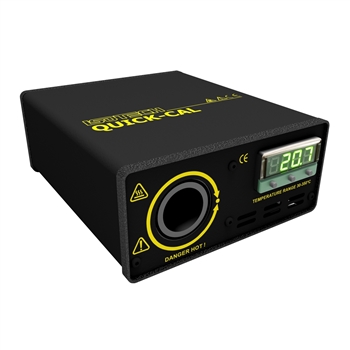

Isotech, Quick Cal Hand Held Infrared Calibrator

Economical IR Calibration

35°C to 350°C (662°F)
Handheld Source Ideal for Field Use

  • Low Cost
  • Very Portable
  • Fast Response Times
Base Price: $2,550.00

Product Code: 552 QUICKCAL R

   Product Description    Downloads

  • OVERVIEW
  • SPECIFICATIONS
  • DOWNLOADS
30°C to 350°C
Emissivity > 0.99
Controller Resolution 0.1°C

When high accuracy is not necessary both Isotech's blackbody and greybody offer cost effective solutions for the calibration and testing of infrared thermometers. The Quick Cal Blackbody is ideal for rapid and portable checking of infrared thermometers. The Greybody Model 975 gives fast accurate results with a larger sensing area, and less emissivity.

A temperature sensor sits just under the target surface and controls the temperature of the source. A custom designed surface sensor is used to set the controller calibration and a traceable certificate is supplied with each source. Either model can be programmed in Fahrenheit or Celsius operation.

Model 550 QuickCal Blackbody
Temperature Range 30°C to 350°C
Display Resolution 0.1°C
Heating time 9 minutes
Target Size 25 x 115m Cavity with end cone
Stability ±0.2°C
Accuracy ± 0.5
Emissivity >0.99
Surface coating 0.98 - cavity gives overall emissivity of >0.99
Power 300 Watts
Voltage 100 - 130 or 208-240 Vac
Dimensions H 65mm
W 152mm
D 175mm
Weight 1.5kg
